Marr company is a professional import instrument, gauge, gauge agent. Since its establishment in 2012, it has been involved in aviation, nuclear industry, automobile power, petroleum machinery, medical and health care and other fields. In the spirit of "integrity management, win-win cooperation" with the purpose of the west flying group, parker hannifin, taisteel alloy and other international well-known enterprises to establish a good relationship of cooperation, and has been recognized by customers.
-Mahr malle roundness meter MMQ100
-Mahr malle roundness meter cylindricity meter MMQ200
-Mahr malle roundness meter cylindricity meter MMQ400
-Mahr malle roundness meter cylindricity meter MMQ400CNC
-Mahr malle roundness meter MFK 500
- Mahr malle roundness meter MFK 600
-Mahr malle roundness meter cylindrical meter MFU 100
-Mahr malle roundness meter cylindrical meter MFU 800
1. German malle roundness meter MMQ100
German roundness instrument Mahr MMQ100
German MAHR mamq100 PLUS true roundness measuring instrument, using high precision mechanical shaft, basically not affected by the use of the environment. It is a high precision machine especially suitable for workshop environment. It is a high grade standard roundness tester
Features:
- high precision mechanical rotating shaft (c-axis), no need of compressed air, basically unaffected by the environment, suitable for workshop use.
-easyform software, can accurately and quickly obtain the measurement results, with the help of the computer can work quickly adjust, alignment, improve the measurement efficiency.
- compact design, small size, small weight, excellent removable
- dynamic performance, can be moved to the required place at any time.
- X-axis and Y-axis are equipped with electronic rulers that feed position data directly to the software for evaluation.
- adjustable center and adjustable inclined thread for coarse and fine tuning of C axis.
German MAHR mamq100 roundness meter composition:
- MARFORM MMQ100 PLUS host
-T2W inductance probe
-MARWIN FORM PC operating software
-win 7 operating system
- liquid crystal display
- printer and USB data cable
Technical data of MAHR mamq100 roundness meter in Germany:
- roundness deviation (muon + muon /mm measured height) (DIN ISO 1101) 0.05+0.0006
-roundness deviation (measured height of mum + mum /mm) (filter 15upr.LSC) 0.025+0.0003
- axial runout deviation (muon + muon /mm measuring radius) (DIN ISO 1101) 0.04+0.0006
-axial runout deviation (muon + muon /mm measuring radius) (filter 15upr.LSC) 0.020+0.0003
- centering adjustment tilting table manual
- table diameter (mm) 160
- load bearing (N) 200 in the center of the table
- speed (RPM) 50Hz / 60hz 5/6
-Z axis - measuring range of vertical element (mm) 300(manual)
-x-axis -measuring range of horizontal unit (mm) 180(manual)
Application of MAHR mallosimeter in Germany：
· evaluate most shape tolerances:
- roundness (partial roundness)
- flatness (primary circle measurement)
- concentricity
- the alignment
-radial runout
- axis to beat
- upper and lower circle parallelism
- harmonic analysis
2. German malle roundness meter cylindricity meter MMQ200

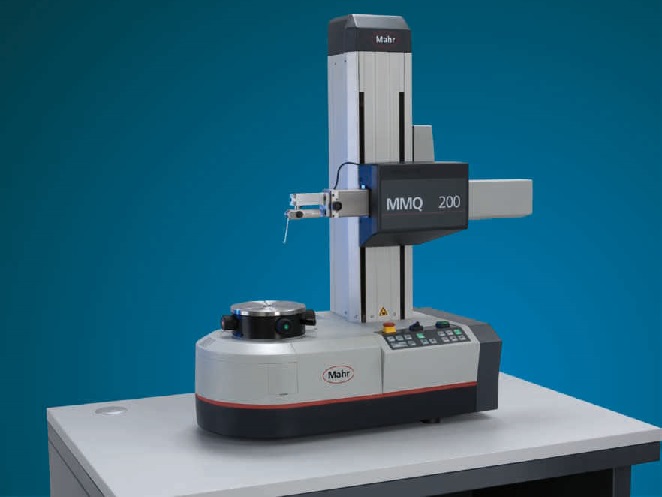

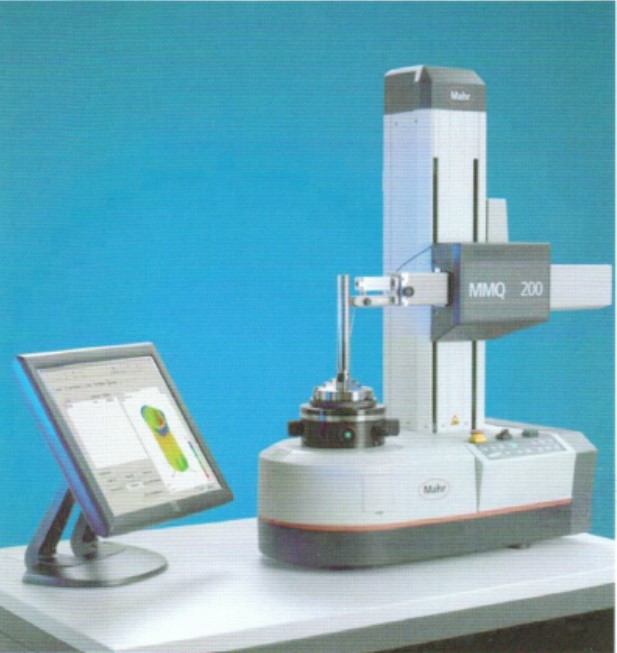

German Mahr roundness meter cylindricity meter MMQ200
Suitable for all kinds of form and position error automatic measurement equipment
1. German Mahr mammq200 roundness meter cylindricity meter is applicable to both production site and measurement room
2. Easy to operate and use
3. High measurement accuracy, the best choice of measuring cylindricity
4. The procedure is simple, efficient and economical
Performance description of German Mahr malmmq200 roundness meter and cylindricity meter
In order to ensure the manufacturing quality of the products, the German Mahr mamq200 roundness meter and cylindricity meter can evaluate various form and position errors according to DIN/ISO 1101 and issue a report. The measurable parameters are as follows:
- roundness
- straightness
- flatness (circular scan evaluation)
- parallel
- taper
- concentricity, coaxiality
-beat, all beat? Cylindricity? slope
- perpendicularity (based on circular scanning surface)
- Angle
- roundness, planeness and radial run-out on the sector
- evaluation of straightness on the interval
Characteristics,
- high precision polar scale measuring axis (C)
- motor driven vertical measuring axis (Z)
- motor driven horizontal positioning axis (X)
- manual centering table
- manual T20W probe

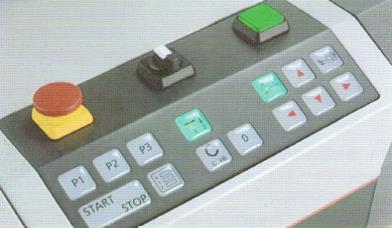

- ergonomic operation panel, which can start the corresponding measurement program with one click (P1, P2, P3)
· your advantages
- product errors can be immediately known
- reduce duplication of effort and waste
- record to ensure product quality
- easy to operate and can be put into use immediately

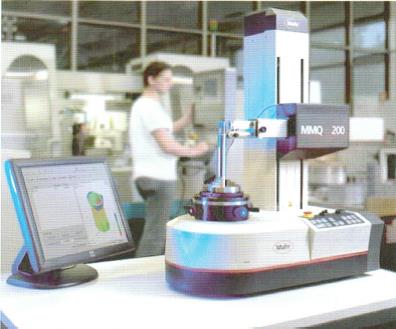

- suitable for both production site and measurement room
· complete solutions
German Mahr mal MMQ200 roundness meter cylindricity meter for your measurement task to provide a complete solution
- adequate technical advice, feasibility test of measurement requirements
- adequate after-sales service: establish measurement procedures and technical support for measurement procedures, provide periodic maintenance contracts, software maintenance contracts, DKD calibration services, measurement and application training
- source of capabilities: products and product development have been in the same place for over 100 years

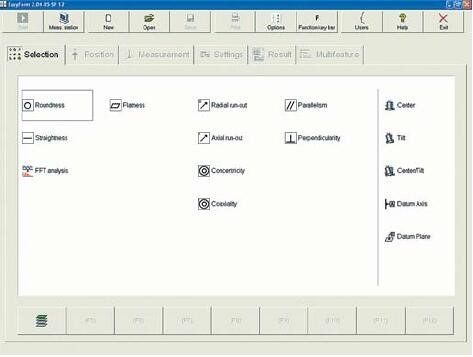

Touch screen display
EasyForm software can support ordinary TFT liquid crystal display, also can support touch screen display. With a touch screen display, you don't need a keyboard or mouse. This option is especially useful if it is used on the production site.
Characteristics,
- more direct measurement, more intuitive user interface
- program creation is more intuitive
- 3d display of cylindricity, flatness and full run-out, which can be color display or grid display; Create a preview from the active graphics
- measurement results can be immediately indicated on the monitor
- the measurement record displayed is concise and clear. It can be saved as a file (or a network file) or printed on paper (any Windows printer).
- operating system: Windows 7
Technical parameters of the cylindricity meter of Mahr mamq200 roundness meter in Germany
The roundness measuring axis, the c axis
Radial run-out error (muon + muon /mm measured height) ** 0.03 + 0.0006
Roundness error (muon + muon /mm measurement error)* 0.015 + 0.0003
Axial run-out error (muon + muon /mm measuring radius) ** 0.04 + 0.0006
Roundness error (muon + muon /mm measuring radius) * 0.02 + 0.0003
Center leveling table
Coarse and fine tuning manual
Table diameter 160 mm
Table load, no eccentricity 200 N
Rotation counter (50 Hz/60 Hz) 1-20 (1/min)
The vertical axis, the Z axis
Measuring range, motor drive 250 mm
Straightness error /100mm** 0.15mm
Straightness error, full course ** 0.3pm
Parallelism error, Z/C axis 0.5 micron
Measuring speed 0.5-20 mm/s
Positioning speed 0.5-100mm /s
Horizontal axis, X axis
Positioning range, motor drive 150mm
Positioning speed 0.5-30 mm/s
Allowable range of measurement
The measured diameter shall not exceed 230 mm
The height measured shall not exceed 380 mm
The spacing between the c-axis and z-axis shall not exceed 218 mm
Size, weight
Length is 803 mm
Width of 388 mm
The height to 883 mm
It weighs about 120 kg
The connection parameters
The voltages are from 100 V to 240 V
(50 Hz to 60 Hz)
Power 180 VA
Environmental conditions
Ambient temperature 20°C± 1°C
Humidity 40%-70% relative humidity
* this value is the maximum deviation error based on the least square circle (LSC), which is measured by the measuring arm of the standard 0 3mm(0.12") measuring ball under 20°C±1°C, natural vibration environment, 15upr filter and 5rpm bar.
** all values are in accordance with DIN ISO 1101 and are measured at the arm of the standard 0 3mm(0.12") ball under the conditions of 20°C±1°C (:, natural vibration environment, 15 upr filter LSC evaluation or 2.5mm filter LSS evaluation, speed of 5 RPM or 5mm /s (0.2"/s).
The above data have been tested by the standard compensation algorithm.
3, German malle roundness meter cylindrical meter MMQ 400
German Mahr roundness meter cylindricity meter MMQ 400
German malle roundness meter cylindricity meter MMQ 400CNC
German Mahr roundness meter cylindricity meter MMQ 400CNC
Faster, better, longer service life:
German Mahr malle roundness meter cylindricity meter MMQ 400 series
German Mahr malle roundness meter cylindricity meter MMQ 400CNC series
DIN/ISO standard roundness, straightness, parallelism, coaxiality, runout, cylindricity, taper, can be easily achieved in Germany marmmq 400 roundness meter cylindrical meter automatic measurement. The German malmmq 400 roundness meter is equipped with a high-precision turntable and different measuring ranges of high-precision measuring axes in the horizontal and vertical directions. The German malroundness meter is able to provide a variety of accessories to help you measure the workpiece. Various options are also available to help you Jane
Easy to complete the measurement of special workpiece.
· you can benefit from the product precision
Everyone has their doubts about the accuracy of the measuring device or the accuracy of the uncertainty - Mahr believes that the demonstration of the measuring device's technical data cannot be made only if it meets the standards. Because these technical data can usually only be achieved under the perfect environment and the workpiece of measurement standard.
But as the market leader in roundness meters for decades, the German Mahr mar MMQ 400 roundness and cylindricity meters have proven to be completely reassuring in terms of accuracy.
Depending on to the customers all over the world many times measurement used and in the process to give us valuable advice, these are the Mahr in research and development equipment performance problem need to face, so now we will also be more referred to in the practical application of precision measuring equipment, because these data are clients are can be achieved in the actual measurement process.
The idea that a single occurrence of theoretical data in many measuring devices indicates that it can be used in most measurement processes is not acceptable, and our goal is to add more accuracy and reduce the external influence on the instrument sensitivity.
The main factors affecting the sensitivity of the measuring instrument are the operator and the environment. The influence of human error includes the judgment of measuring force, adjustment of measuring pin Angle, positioning, clamping of workpiece, positioning of measuring point, measuring method and understanding of measuring parameters. A good measurement system should be able to avoid the influence of human factors and self-correct the data as necessary. Simple use, support for different applications and automatic protection program is also a good software indispensable.
Environmental effects include: temperature control, vibration, cleaning of the workpiece (coolant, surface dirt)
To improve the actual use accuracy and increase the application range, the German malmmq 400 roundness meter cylindrical meter as the goal and walk in the forefront of the development of The Times
The developer's effort and experimentation in the development process
The once successful automatic T7W sensor is perfectly restored on the MMQ 400 roundness meter, and the unique features of the German Mahr Mahr mfu100/8000 roundness meter are also part of the new design of the MMQ 400 roundness meter.
Fully automatic CNC control T7W sensor reduces the impact of human error through automatic control in the direction of measurement, automatic rotation of the measuring needle, and convenient replacement of magnetic suction measuring needle. Extreme small force measurement and excellent linearity improve the accuracy of the measurement.
MarWin ProfessionalForm has also been successful in tens of thousands of USES, including the MMQ 400 roundness meter. The convenient human-machine interface allows you to create programs quickly and easily. We also gained a lot of experience in the software platform form-pc, which is integrated into the new AdvancedForm software. Some of the new features include: automatic contact of the instrument to improve the uncertainty of the measurement and the repeatability of the instrument precision, ensuring that the operator can complete the operation independently and the operation method is easy to understand.
