Rivelec PLASTIFORM

Brand/model: Rivelec PLASTIFORM/ ke-ad lk-ad, France

Model no. : ke-ad LK-AD

Accuracy: 0.001

Scope of application: internal measurement scheme

Brand: Rivelec PLASTIFORM, France

Packing number: 2

Machining customization: yes

Measuring range: 0-300 (mm)

Rivelec PLASTIFORM internal inch measurement film glue

NDT control in replication mode this product allows the replication of molded, complex internal mechanical parts that can then be viewed and examined using optical, non-contact measuring equipment. The product and the additive contain two parts and must be mixed in proper proportions to ensure correct polymerization. Before applying the product, make sure to copy the test object completely clean and free from grease.

Lossless control in A copy mode

B this product allows the reproduction of molded, complex internal mechanical parts which can then be viewed and examined using optical, non-contact measuring equipment.

C the product and the additive contain two parts and must be mixed in proper proportions to ensure correct polymerization.

D. Before application of the product, make sure that the test objects are completely clean and not greasy.

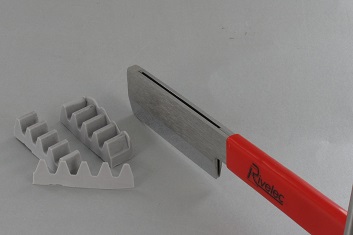

Fluid consistency is best for internal molding and full replication of small and medium sizes. Medium elasticity (10% core) allows replication to be removed in most cases. Reproduction of the most minute details can be used for indirect comparison with visual inspection of sample surface finish and direct inspection with roughness. Special cutting tools that cut easily.

DAV● fluid consistency is most suitable for internal molding and full replication of small and medium sizes. High strength elasticity (20% core) allows hardness replication to be removed such as large reentrant angles, grooves, and complex internal shapes. Reproduce the final details. Not easy to cut with a knife. Replication will be better checked throughout.

SOFT● paste consistency is most suitable for molding internal, external and department replication of small and medium size. Medium elasticity (10% core) allows replication to be removed in most cases. Smaller details can be reproduced. It is easy to be cut with special tools.

JAD● paste consistency is most suitable for molding internal, external and departmental replication of small and medium sizes. High strength elasticity (20% core) allows hardness replication to be removed such as large reentrant angles, grooves, and complex internal shapes. Not easy to cut with a knife. Replication will be better checked throughout.

KVAD● adhesive consistency is most suitable for molding internal, external and sector replication in small and medium sizes. Manual application. Low elasticity (from 1% to 2% core) can be easily copied and molded and easily removed. Also suitable for printing machinery. It can be easily cut with a knife.

Product performance
