Japan sanfeng is one of the three famous manufacturers of measuring tools in the world. The high-precision CMM measuring machine produced by sanfeng is a combination of many measuring technologies with high precision and fast motion.

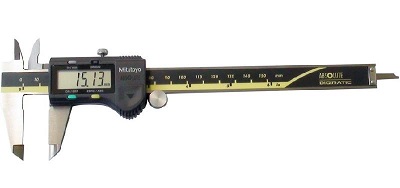

Digimatic caliper is a new generation of electronic caliper products. It can continuously track the origin position set. Whenever the machine is switched on, the large LCD screen will display the current sub-scale position for measurement at any time. Using the origin encoder technique, there is no need to adjust zero repeatedly, and there is no overspeed error.

I. features:

1. Large clear LCD reading display.

2. The ZERO/ABS key can be set to ZERO at any position of the slider for step comparison of measurement results. This switch can also return to the origin (ABS) coordinate position and show the actual position from the origin (usually the closure point of the quantity claw).

3. Data retention device (959143) options are available.

4. Calipers with carbide head measuring claws are available.

Ii. Functions:

Origin setting, zeroing, data output, British/metric conversion (British/metric)

Warning: low voltage, calculation error technical parameters: accuracy: ±0.02mm (model with measurement range less than or equal to 200mm)

±0.03mm (models with measurement range less than or equal to 300mm)

±0.05mm (model with measurement range less than or equal to 600mm)

±0.07mm (models with measurement range less than or equal to 1000mm)

(excluding quantitative deviation)

Resolution: 0.01mm or.005 "/0.01mm

Repeat accuracy: 0.01mm

Display: liquid crystal display

Length standard: ABSOLUTE electrostatic capacitor linear encoder

Corresponding speed: no limit

Battery: SR44(1), 93882

Battery life: about 3.5 years in normal use

Iii. Options:

959143: data retention device

959149: SPC cable with data switch (1m)

959150: SPC cable (2m) performance parameter with data switch

Iv. Performance parameters:

Measurement range no. Precision depth measuring rod thumb adjusting roller remark

0-100mm 500-150-20 ±0.02mm 1.9mm rod with thumb adjusting roller --

0-100mm 500-180-20* ±0.02mm 1.9mm rod --

0-150mm 500-151-20* ±0.02mm thin slice with thumb adjusting roller --

0-150mm 500-154-20 ±0.02mm thin section with thumb adjusting roller head measuring claw for outer diameter measurement

0-150mm 500-155-20 ±0.02mm thin section with thumb adjusting roller for measuring outer and inner diameters

0-200mm 500-158-20 ±0.02mm 1.9mm rod with thumb adjusting roller --

0-200mm 500-181-20*±0.02mm thin slice --

0-200mm 500-152-20 ±0.02mm wafer with thumb adjusting roller --

0-200mm 500-156-20 ±0.02mm thin slice -- carbide head measuring jaw for outer diameter measurement

0-200mm 500-157-20 ±0.02mm thin section with thumb adjusting roller for measuring outer and inner diameters

0-200mm 500-182-20*±0.02mm thin slice --

0-300mm 500-153 ±0.03mm wafer with thumb adjusting roller --

0-450mm 500-500-10±0.05mm -- --

0-600mm 500-501-10±0.05mm -- --

0-1000 mm500-502-10 + / - 0.07 mm -- -- --

* no SPC data output

5. English/metric conversion:

Measurement range no. Depth measuring rod thumb adjusting roller remark

0-4 "(0-100mm)500-170-20 3/40" rod with thumb adjusting roller --

0-4 "(0-100mm)500-195-20* 3/40" rod with thumb adjusting roller --

0-6 "(0-150mm)500-171-20 wafer with thumb adjusting roller --

0-6 "(0-150mm)500-174-20 wafer with thumb adjusting roller for outer diameter measurement with carbide head measuring claw

0-6 "(0-150mm)500-175-20 thin section with thumb adjusting roller for measuring outer diameter and inner diameter

0-6 "(0-150mm)500-178-20 3/40" rod with thumb adjusting roller --

0-6 "(0-150mm)500-196-20* wafer with thumb adjusting roller --

0-6 "(0-150mm)500-159-20* wafer with thumb adjusting roller for outer diameter measurement with carbide head measuring claw

0-6 "(0-150mm)500-160-20* thin section with thumb adjusting roller for measuring outer diameter and inner diameter

0-8 "(0-200mm)500-172-20 wafer with thumb adjusting roller --

0-8 "(0-200mm)500-176-20 thin section with thumb adjusting roller for outer diameter measurement with carbide head measuring claw

0-8 "(0-200mm)500-177-20 thin section with thumb adjusting roller for measuring outer diameter and inner diameter

0-8 "(0-200mm)500-197-20* wafer with thumb adjusting roller --

0-8 "(0-200mm)500-163-20* thin section with thumb adjusting roller for outer diameter measurement with carbide head measuring claw

0-8 "(0-200mm)500-164-20* thin section with thumb adjusting roller for measuring outer diameter and inner diameter

0-12 "(0-200mm)500-173 wafer with thumb adjusting roller --

0-12 "(0-200mm)500-167 wafer with thumb adjusting roller for outer diameter measurement with carbide head measuring claw

0-12 "(0-200mm)500-168 sheet with thumb adjusting roller for measuring outer diameter and inner diameter

0-12 "(0-200mm)500-193* wafer with thumb adjusting roller --

0-12 "(0-200mm)500-165* wafer -- carbide head measuring jaw for outer diameter measurement

0-12 "(0-200mm)500-166* wafer -- carbide head measuring jaw for measuring outer and inner diameters

0 to 18 "(0-200 - mm) 500-505-10 - - -

0-24 "(0-450 - mm) 500-506-10 - - -

0 to 40 "(0-1000 - mm) 500-507-10 - - -
