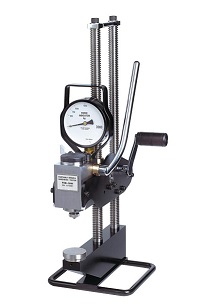

The King durometer is a portable brinell durometer. It adopts the hydraulic principle and relies on manual pressure to generate a maximum test force of 3000kg. The core component of the durometer is a small hydraulic system.

Technical parameters

Maximum test height :500mm (20")

Throat depth :100mm (4")

Try to check power: 3000 kg,

Test scope :HBW100-650Precision: 0.5% of the load

Compliance with standards: ASTM e-110, #240, pt.2, Sect. 1, and JIS

Standard configuration:

1. Standard bracket, maximum test height 20 inches, throat depth 4 inches;

2. 3000KG calibrated measuring head;

3. Standard 10mm brinell head;

4. Platform, arc and v-shaped anvil;

5. Factory calibration certificate

6. Warranty card and warranty description

7. Operation and maintenance manual
